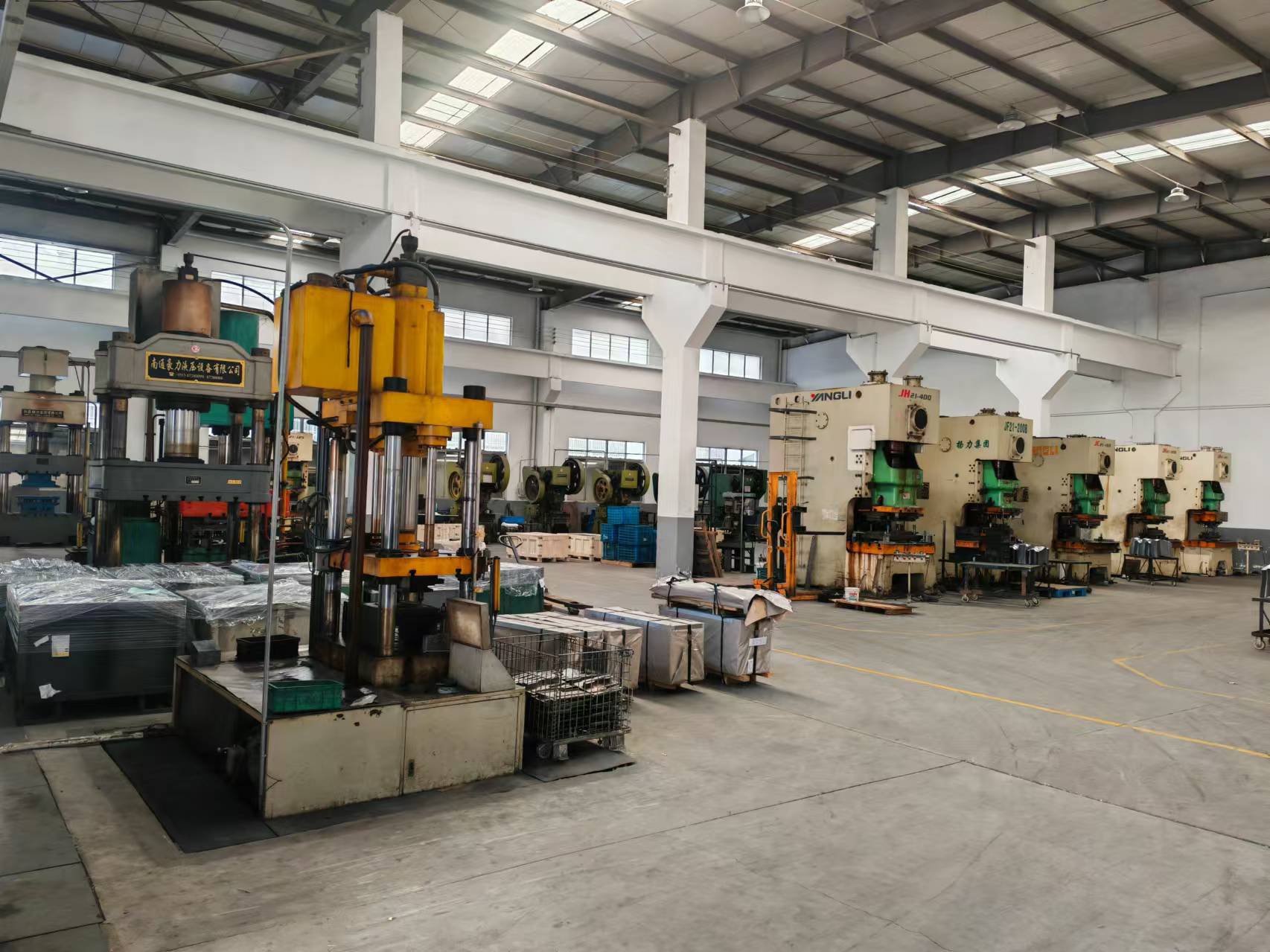

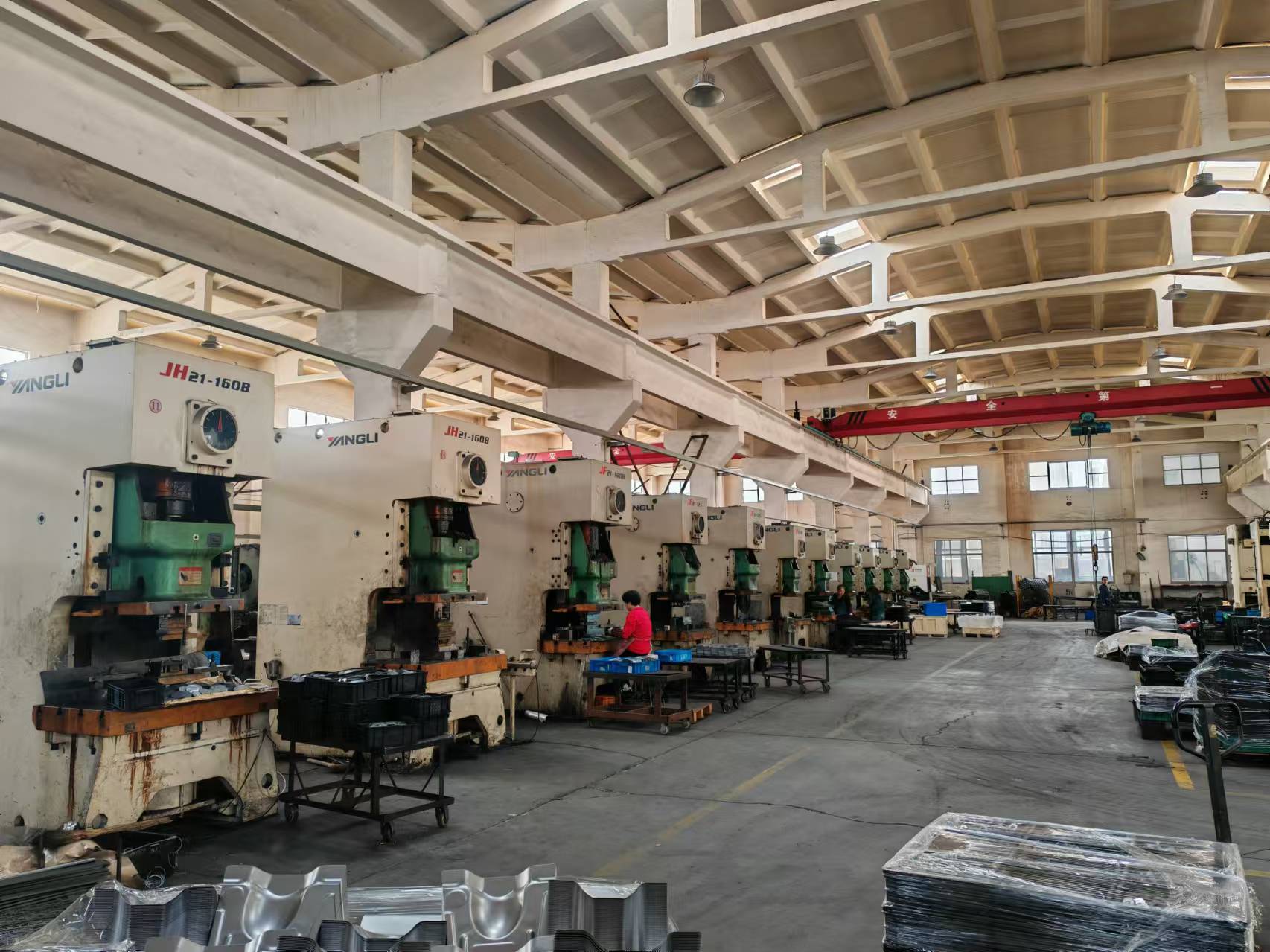

Stamping equipment is a type of equipment that obtains the desired shape and size by applying pressure to cause metal or other materials to undergo plastic deformation in the mold. The following is a detailed introduction to stamping equipment:
First, the composition of stamping equipment
1.Body:
Function: To provide a stable support structure for the stamping equipment to withstand various forces in the stamping process.
Type: Open fuselage and closed fuselage. The open fuselage is easy to operate, but the rigidity is relatively weak; The closed body has good rigidity and high precision.
2。Slider:
Function: Install the mold and move up and down under pressure to achieve stamping of the material.
Characteristics: The movement accuracy and speed of the slider directly affect the quality and production efficiency of the stamping parts.
3.Transmission system:
Function: Transfer power to the slider to make it produce reciprocating motion.
Composition: Usually includes motor, reducer, crankshaft, connecting rod and other components.
4.Control system:
Function: Control the operation of stamping equipment, including start, stop, speed adjustment, stroke control, etc.
Type: mechanical control, hydraulic control, electrical control and other ways.
5.Mold:
Role: Determine the shape and size of the stamping part.
Composition: Consists of an upper die and a lower die, usually made of high-strength alloy steel.
